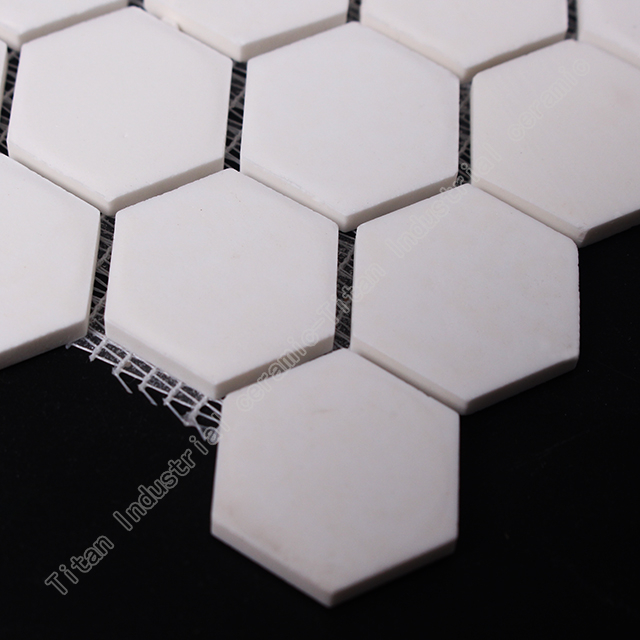

Hexagonal Tile

1. High hardness, the Rockwell hardness is hra80-90, the hardness is second only to diamond.

2.The wear resistance is 266 times of manganese steel and 171.5 times of high chromium cast iron.

3. It is light in weight and its density is 3.6g/cm3, which is only half of that of steel. It can greatly reduce the equipment load.

4. Convenient construction

Availability:
Quantity:

[Properties]

1. High hardness, the Rockwell hardness is hra80-90, the hardness is second only to diamond.

2.The wear resistance is 266 times of manganese steel and 171.5 times of high chromium cast iron.

3. It is light in weight and its density is 3.6g/cm3, which is only half of that of steel. It can greatly reduce the equipment load.

4. Convenient construction

[Application]

It is widely used in coal conveying system, material conveying system, pulverizing system, ash discharging and dedusting system in thermal power, iron and steel, smelting, machinery, coal, mining, chemical industry and cement industries etc.

[Chemical composition and physical properties]

Series

T36

TG365

AL2O3(%)

92±0.5

95±0.5

Bending strength(Mpa)

220

250

Compressive strength(Mpa)

1050

1300

Fracture toughness(MPam1/2)

3.70

3.80

Rockwell hardness(HRA)

82

85

Wear volume(cm3)

0.25

0.2

Bulk density(g/cm3)

3.6

3.65

[Specification Available]

Length*Width

Height

Note

12*12

6-25

paste

12.5*12.5

6-25

paste
