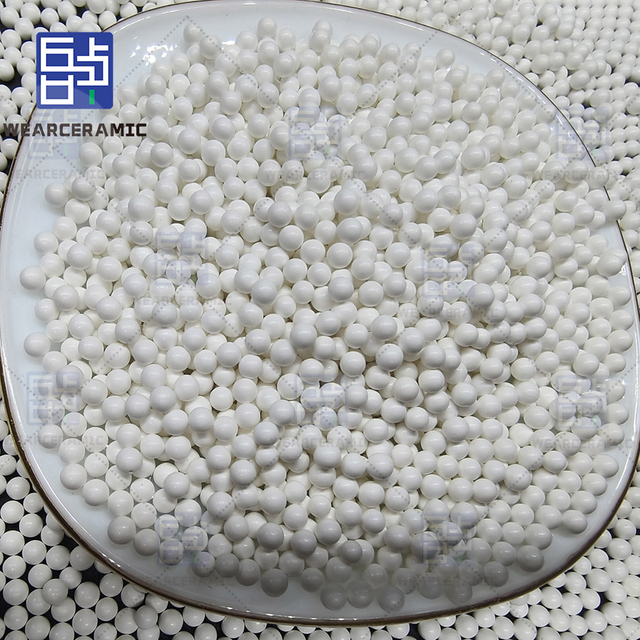

What is the zta ceramic balls ?
Zta ceramic balls are also called Zirconia toughened alumina balls ,they are high-performance grinding media made of alumina powder and zirconium oxide powder in proportion.
They have excellent wear resistance, corrosion resistance and high temperature resistance in high temperature and strong corrosive environments. At the same time, zirconium-aluminum composite balls have high hardness, high compressive strength, good oxidation resistance, good wear resistance and impact resistance.
Because of zta ceramic balls' feature , it can be widely used in non-ferrous metal mines, industrial ceramics, non-metallic minerals, titanium dioxide, papermaking, coatings, inks and other fields.
Why does our company develop zirconium-aluminum composite balls?
Our company has developed different types of zirconium-aluminum composite balls with zirconium content of 5-75% and specific gravity of 3.2-5, mainly to meet the needs of customers for different grinding media densities under different working conditions.
What is the production process of zirconium-aluminum composite balls?
The preparation process of zirconium-aluminum composite balls includes mixing specific calcined alumina powder, certain zirconium-containing powder and other raw materials according to a ratio, grinding to a certain fineness in a ball mill, spray granulation, and then rolling into shape, and finally calcining at high temperature.
This perfect preparation process makes the surface of the ball smooth, the self-lubricating performance of the ceramic is outstanding, and the scientific sorting process ensures better roundness and low wear in grinding conditions.
At the same time, it also ensures that the zirconium-aluminum composite ball has good mechanical strength and excellent wear resistance, so that it can play an important role in grinding operations in copper mines and other fields.
Technical specification
BMZTA5 | BMZTA10 | BMZTA60 | BMZTA70 | BMZTA75 | |
Chemical composition | AL₂O₃+ZrO₂ ≥92% | AL₂O₃+ZrO₂ ≥85% | AL₂O₃+ZrO₂ ≥95% | AL₂O₃+ZrO₂ ≥96% | AL₂O₃+ZrO₂ ≥96% |
SiO₂ ≤5% | SiO₂ ≤10% | SiO₂ ≤2% | SiO₂ ≤2% | SiO₂ ≤2% | |
Others ≤3% | Others ≤5% | Others ≤3% | Others ≤2% | Others ≤2% | |
Density (g/cm³) | ≥3.7 | ≥3.8 | ≥4.5 | ≥4.7 | ≥5.0 |
Vickers hardness(GPa) | ≥12 | ≥11 | ≥12 | ≥12 | ≥11 |
Rapid wearing rate (g/kg.h) | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 |
Dimension(mm) | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 |
Roundness | 96% | 96% | 96% | 96% | 96% |
What are the characteristics and advantages of the product?
Characteristic
Zirconium-aluminum composite balls have the characteristics of low wear, high hardness, impact resistance, acid and alkali resistance, high temperature resistance, good stability, economical and practical.
Advantages
1. Excellent corrosion resistance and chemical stability, able to resist corrosion from various strong acids, strong alkalis and other chemical substances without chemical reactions and fragmentation.
2. Super strong wear resistance and hardness, suitable for grinding occasions in various harsh environments. Excellent wear resistance can greatly improve production efficiency.
3. High specific gravity and high density make it have very good penetration and distribution during the grinding process, which can greatly improve the grinding effect and efficiency.
4. High toughness and impact resistance: zirconium-aluminium composite ball by adding a certain amount of zirconium, improves the toughness of the product, so that it is not easy to break in the process of use, and it can resist large impact, improve grinding efficiency.
5. High thermal conductivity: zirconium-aluminium composite ball has good thermal conductivity, can quickly conduct and dissipate heat, reduce the heat accumulation in the grinding process, which is conducive to improving grinding efficiency and preventing thermal damage.
6. Economical: Compared with zirconium oxide balls, zirconium-aluminium composite balls have a lower price and a higher cost-effectiveness.
How to choose the size?
Depending on the type of raw material to be ground, the fineness of the feed and discharge.
In addition, the available sizes (diameter, length) of the ball mill and the type of ball mill are also important.
What effect do you want to achieve?
1. Maintain uniform grinding particle size and improve product quality?
2. Improve grinding efficiency and increase output?
3. Maintain raw material purity and reduce material pollution?
4. Reduce the number of ball changes, reduce maintenance costs, and extend the service life?
5. Reduce costs.
What is the specific application of zirconium-aluminum composite balls?
1. Metallic minerals such as copper, silver, nickel, gold, zinc, platinum group metals, lead, etc.
For many minerals, medium density media (3.7-4.2 g/cm3) is the best choice, providing the right combination of stress strength and impact probability.
2. Non-metallic minerals such as graphite, calcium carbonate, kaolin, zirconium silicate, titanium dioxide, gypsum and quartz, etc.
Mineral pigments and fillers (such as TiO 2, CaCO 3, talc, clay, barite or zeolite) need to be processed in large mills for a long time.
The main challenge is to minimize the energy required to achieve the target grinding degree. Determining the right media is essential to optimize grinding and maintain operating efficiency. Bead density and size are the main selection criteria; choosing the right combination has a major impact on overall process economics
3. Advanced ceramic materials, frits and glazes.
4. Chemical materials, paints, pigments, inks, dyes.
Paint, ink and coating formulations typically contain pigments, fillers, additives and solvents, all of which are added to the binder. Solvents can be organic or water-based.
Producing a consistent and uniform product from such a diverse combination of raw materials is a challenge for the grinding process. The development of gloss and color intensity are both critical factors and are often highly dependent on the choice of media.
Application of zirconium-aluminum composite balls in copper mines?
Zirconium-aluminum composite grinding balls are composed of zirconium oxide and aluminum oxide. They have excellent properties such as high hardness, high density and high wear resistance. Therefore, their application in the mining industry is gradually increasing. Our copper mine guests especially like medium-density zta balls.
In copper mines, zirconium-aluminum composite grinding balls can be used in ball mills, autogenous mills, SAG mills and other equipment in copper mine grinding operations, which can effectively improve the efficiency of mineral processing production and reduce grinding costs.
Specific applications include the following aspects:
1. Improve grinding efficiency. Due to the high hardness and low wear of zirconium-aluminum composite grinding balls, the grinding efficiency of ball mills, autogenous mills and SAG mills can be improved.
2. Extend the grinding cycle. Zirconium-aluminum composite grinding balls have extremely high wear resistance and can extend the grinding cycle.
3. Reduce grinding costs. The wear resistance and service life of zirconium-aluminum composite grinding balls are longer than those of traditional grinding balls, so the cost of replacing grinding balls and maintaining equipment can be reduced.
4. Improve the purity of minerals. Since zirconium-aluminum composite grinding balls have good wear resistance and are pollution-free, the purity of the mineral is guaranteed.
Packaging method
25kg/bag,1000kg/pallet
1000kg/ton bag,2ton bag/pallet
why choose us?
1. Our company is equipped with advanced equipment.
We have advanced raw material ultra-fine grinding equipment, granulation equipment, automatic molding equipment and sintering equipment, etc.
2. We have a professional team that can provide one-stop solutions.
Our team includes a professional technical team, an excellent sales team, a skilled workshop worker team and a strict quality management team.
3. We can customize products according to customer needs and drawings.
Customer satisfaction rate is 100%.
4. Fast delivery.
Generally, it takes 5-10 days to ship products in stock, and 10-15 days to ship conventional products that need to be produced. Customized products generally take 20-40 days to ship according to the difficulty and quantity of the product.
5. Global Shipping
We can ship by sea, air, road, rail, sea and truck combined transport and international express, etc., and send the goods quickly and safely according to customer needs.
FAQ
1.What are the advantages of ZTA ceramic grinding balls?
A: The advantages of ZTA ceramic grinding balls include high strength, high wear resistance, high hardness, high temperature stability, good chemical stability and good surface quality.
2.How to judge the quality of ZTA ceramic grinding balls?
A:The quality of the grinding balls can be judged by the appearance, hardness, density, wear and other parameters of the grinding balls.
3. What should I do if I don’t know what size of ball to use?
A:We have professional technicians who can give you suggestions based on the fineness of your input and output materials.
4.Which density of zta balls is more suitable for grinding minerals?
A:Generally speaking, zta balls with a specific gravity of 3.8-4.2 are more suitable for grinding minerals.
5.Can ZTA ceramic grinding balls replace steel balls?
A:ZTA ceramic grinding balls can replace traditional steel balls or other abrasives, with better abrasive performance and life.
6.How many tons of ZTA grinding balls can be loaded in a 20GP small cabinet?
A:25 tons.
7.How long does it take to produce 25 tons of ZTA ceramic grinding balls?
A:According to the normal production cycle, it usually takes 20-30 days. If you need it urgently, we can expedite it for you.
