Wear-resistant Ceramic Liner

Introduce
Alumina ceramic liner is a high-performance material with excellent performance and wear resistance. It is made of alumina (AL2O3) as the main material, supplemented by other ingredients, and sintered at a high temperature. It is widely used in many industrial machines and equipment, including centrifuges, blowers, ball mills, desulfurization units and jet coal mills. Its main purpose is to extend the life of equipment and improve production efficiency by successfully preventing materials from hitting the pipe wall. Strong wear resistance, high hardness, good corrosion resistance, strong chemical inertness and superior mechanical properties are the main characteristics of alumina liner.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Introduction

Alumina ceramic liner is a high-performance material with excellent performance and wear resistance. It is made of alumina (AL2O3) as the main material, supplemented by other ingredients, and sintered at a high temperature. It is widely used in many industrial machines and equipment, including centrifuges, blowers, ball mills, desulfurization units and jet coal mills. Its main purpose is to extend the life of equipment and improve production efficiency by successfully preventing materials from hitting the pipe wall. Strong wear resistance, high hardness, good corrosion resistance, strong chemical inertness and superior mechanical properties are the main characteristics of alumina liner.


Advantages

Alumina ceramic lining has richer and superior performance than other materials, and can be applied to various  industrial environments. Its main advantages are:


1. Wear resistance

Alumina ceramic lining has the high hardness of alumina, can withstand huge mechanical loads, is not easy to wear, can extend the service life of equipment, and reduce the need for replacement, especially in areas where wear is common.


2. Corrosion resistance

Alumina ceramics have strong resistance to corrosive chemicals and environments, and hardly react with any acidic or alkaline substances, always maintaining their original performance, protecting equipment from corrosion and decomposition, and extending the service life of equipment.


3. Thermal stability

Alumina lining has good thermal stability, and can maintain stable performance without cracking even when the temperature changes drastically. Therefore, it is an ideal choice for high-heat applications.


4. Easy construction

Easy to install and construct, compared with metal materials, alumina ceramic lining is relatively light in weight and more convenient for workers to operate. alumina wear-resistant ceramics have a relatively flat surface, are firmly bonded to the substrate, and are not easy to fall off.


5. Reduce maintenance

Due to the strong wear resistance of the wear-resistant lining, the number of maintenance and replacement can be greatly reduced, and the operating cost consumption can be reduced; at the same time, the equipment downtime is short, which can maximize the creation of productivity and improve industrial efficiency, thereby improving the overall operational efficiency of the enterprise.


6. Environmental protection

The ceramic materials used are non-toxic and will not pollute the environment. These products do not produce harmful substances when used, so they are a sustainable industrial application. Since they do not need to be replaced frequently, the ceramic lining has a long service life, is durable, and is also helpful for environmental protection.

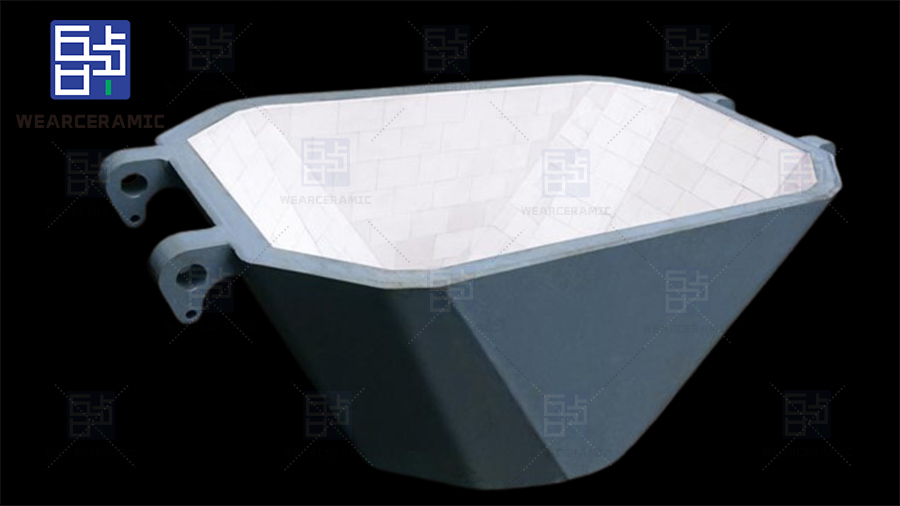

ceramic liner


Types of Alumina ceramic liner

1.Flat Liner

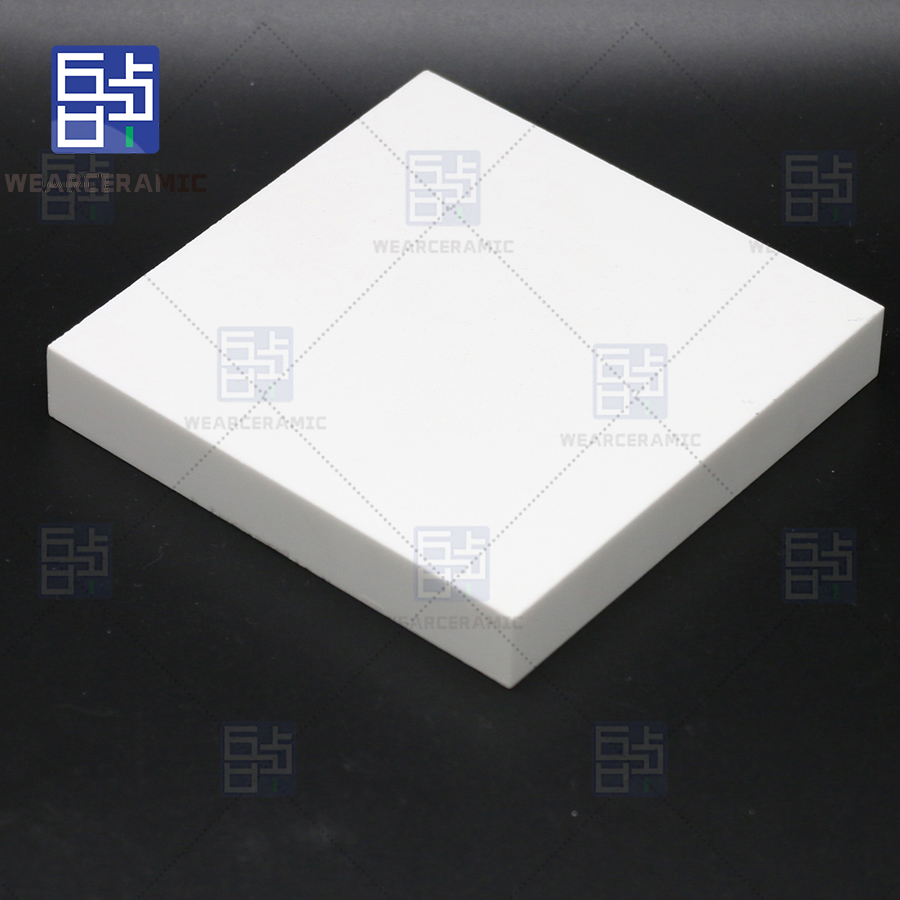

Our wear-resistant ceramic tiles available in full sizes,and it can be pasted on the equipmet only with ceramic adhesive,easy and fast installation,with high cost performance.Paste type liner suitable for large area constructionand the most widely used.Its common specifications include 150*100, 150*50,100*100,100*50, 120*80,60*40,50*50 and other models.

ceramic liner 14ceramic liner 15


2.Weldable liner

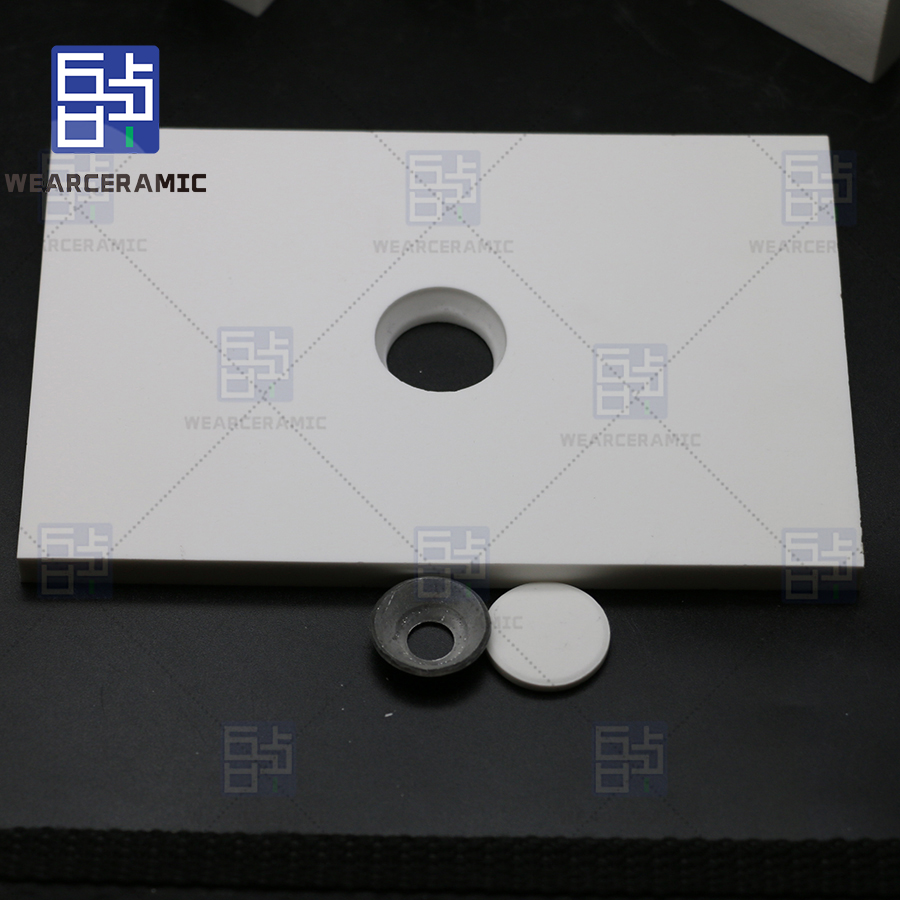

There is a round hole in the middle of the welding liner that is larger at the top and smaller at the bottom.Each piece of ceramic is welded to the surface of the equipment by welding technology to ensure that the ceramic does not fall off under harsh working conditions, forming a solid anti-wear layer. This solves the problem of equipment wear under harsh working conditions such as high temperature, large impact or dynamic operation.Its common specifications include 150*100, 150*50,100*100,100*50 and other models.

ceramic liner 5ceramic liner 4


3.Trapezoidal liner

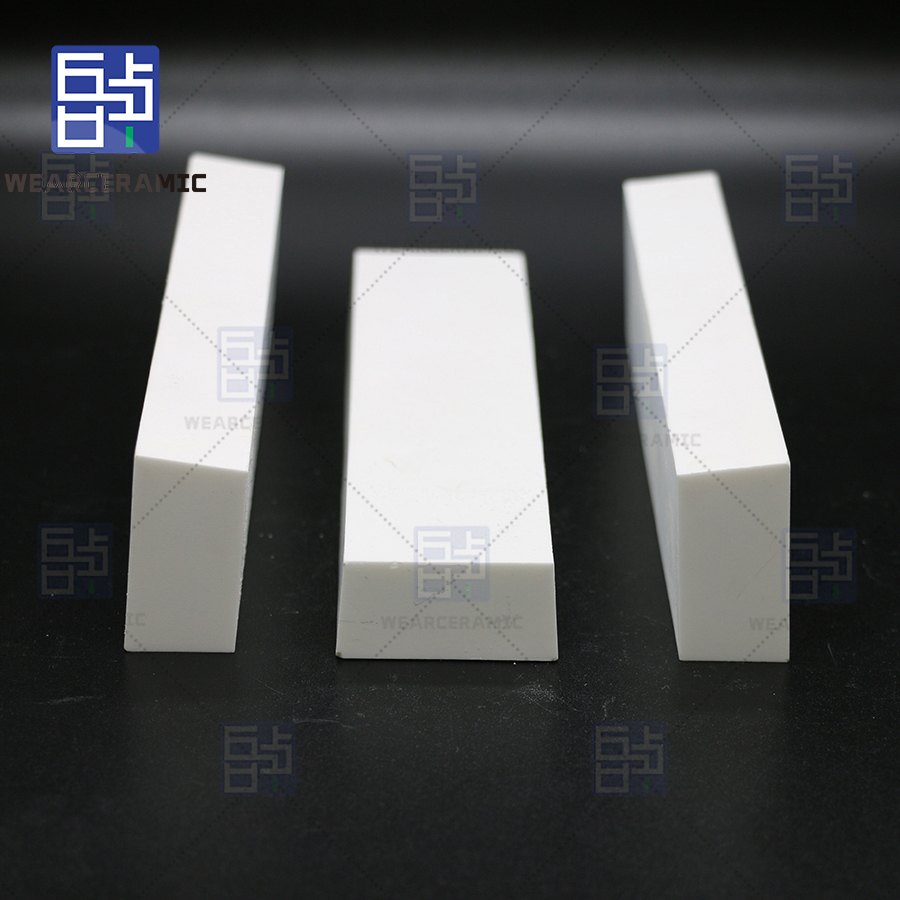

The design of the trapezoidal wear-resistant liner adopts a trapezoidal structure, which makes it have good impact resistance and anti-slip performance, which can effectively reduce the load of the equipment and prevent equipment wear and damage. The trapezoidal pipeline ceramic lining is mainly used to manufacture key components of equipment such as reactors, pipelines, furnaces, etc.Its common specifications include 150*50/47*20, 150*40/37*20 and other models,choose the appropriate size according to the pipe diameter.

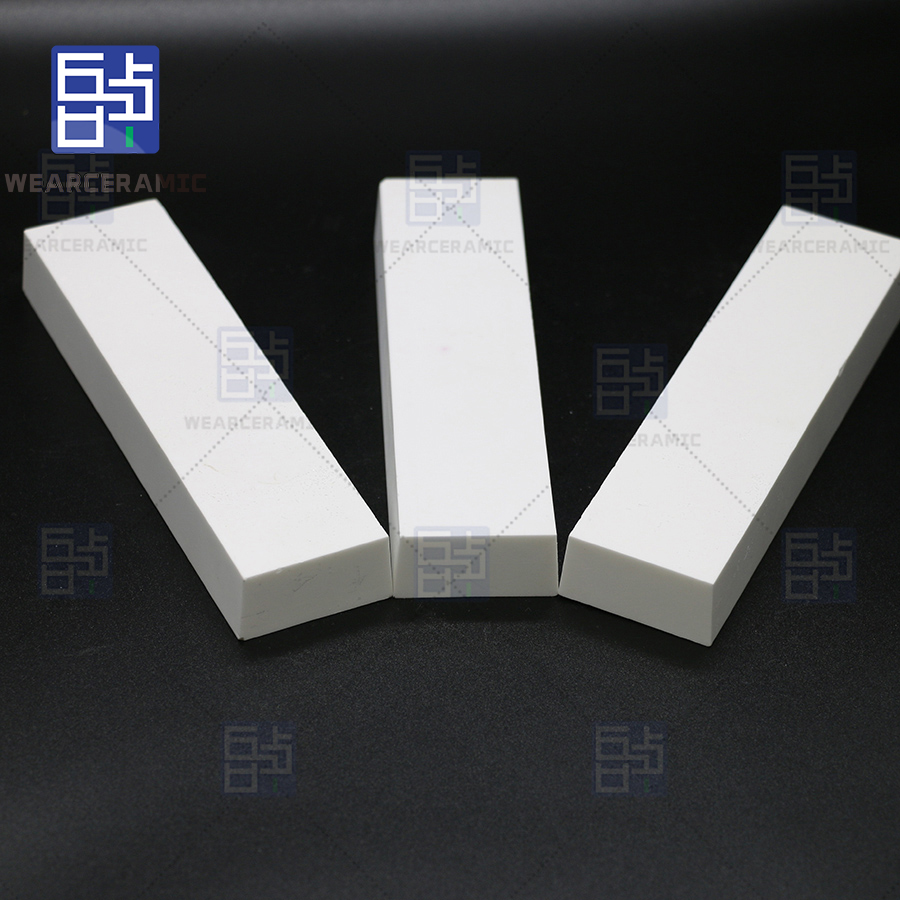

ceramic liner 2ceramic liner 3


4.Interlocking Liner

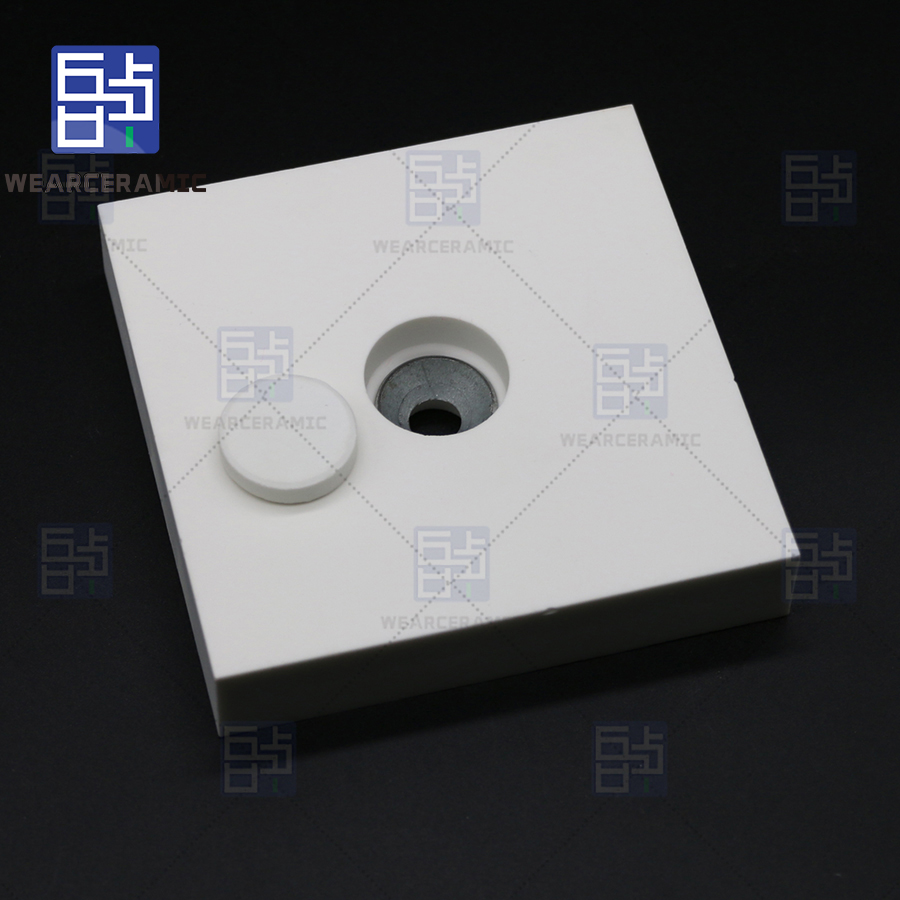

The interlocking slot wear-resistant ceramic liner has a concave and convex inlaid snap buckle, which is not only conducive to the firmness of the ceramic, but also because of the existence of the U-shaped bend, it effectively protects the gap between the ceramic plates from being eroded by the material. The slot liner is usually fixed to the equipment by mechanical force, and does not require the use of ceramic adhesive or stud welding and other installation methods that are afraid of high temperatures.

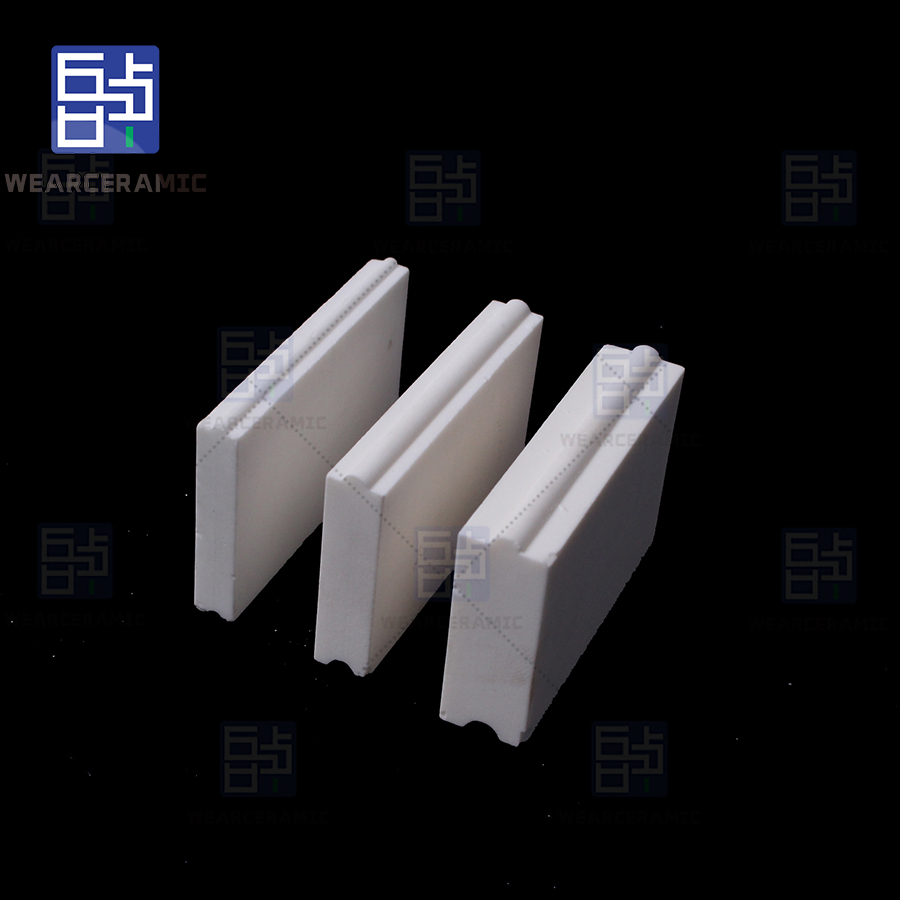

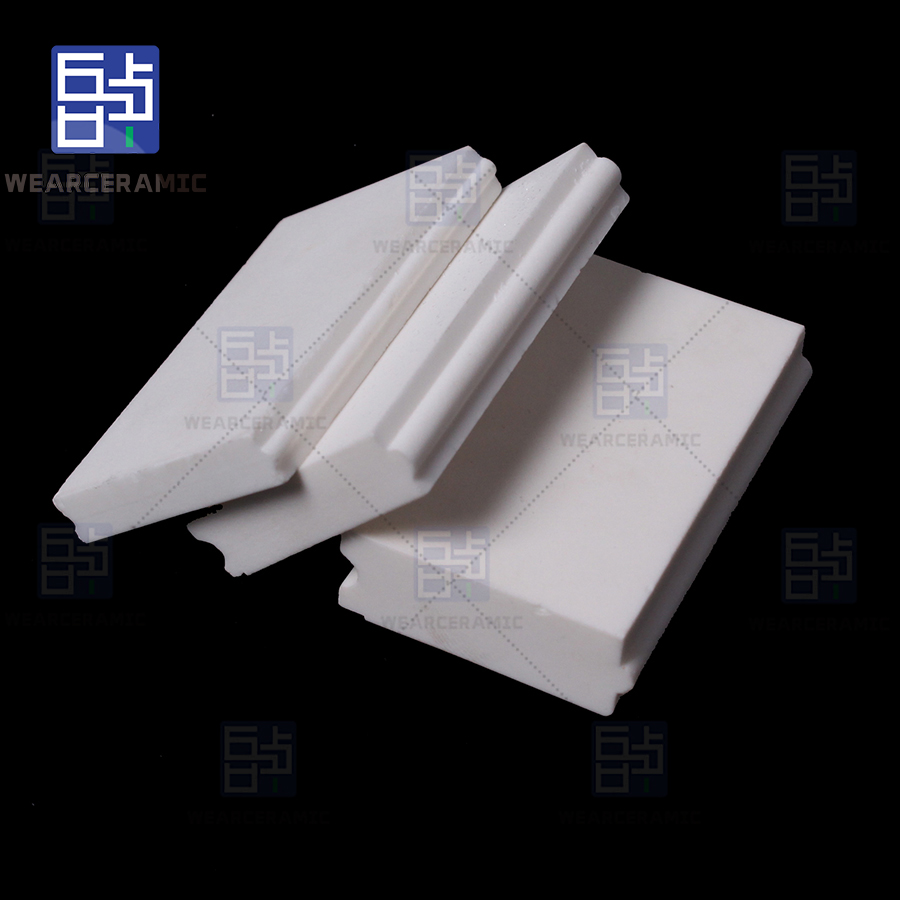

ceramic liner 2ceramic liner 1


5.Dovetail Liner

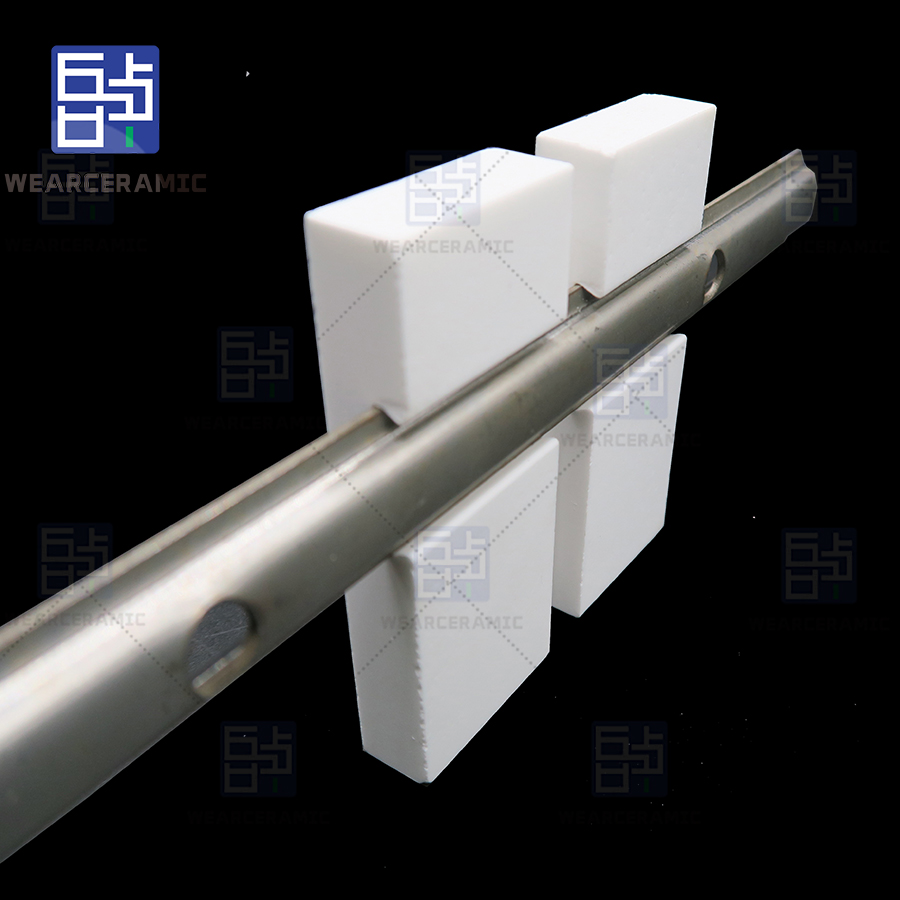

The dovetail slot wear-resistant liner is mainly composed of dovetail ceramics and stainless steel guide rails. The dovetail ceramics have a special shape that can be fixed to the equipment using pure mechanical force, avoiding the use of ceramic adhesives, stud welding and other installation methods that may be unstable due to high temperatures. The stainless steel guide rail plays a supporting and guiding role, ensuring that the dovetail ceramics can be accurately and firmly installed in the wear area of the equipment.

ceramic liner 3ceramic liner 4


6.Mosaic Ceramic Tile

Mosaic ceramic tiles can be divided into square tiles, hexagonal tiles and special-shaped tiles according to their shapes, and can also be customized according to customer needs.The thickness of the tiles is relatively large, so we usually use mesh cloth for bonding.The whole sgeet of ceramic tile is flexible, light and easy to cut, so it is often used on irregular equipment surfaces or in places where weight and space are limited, such as steel pipe linings.Its common specifications include 100*150,200*200,250*250,500*500 and other models.

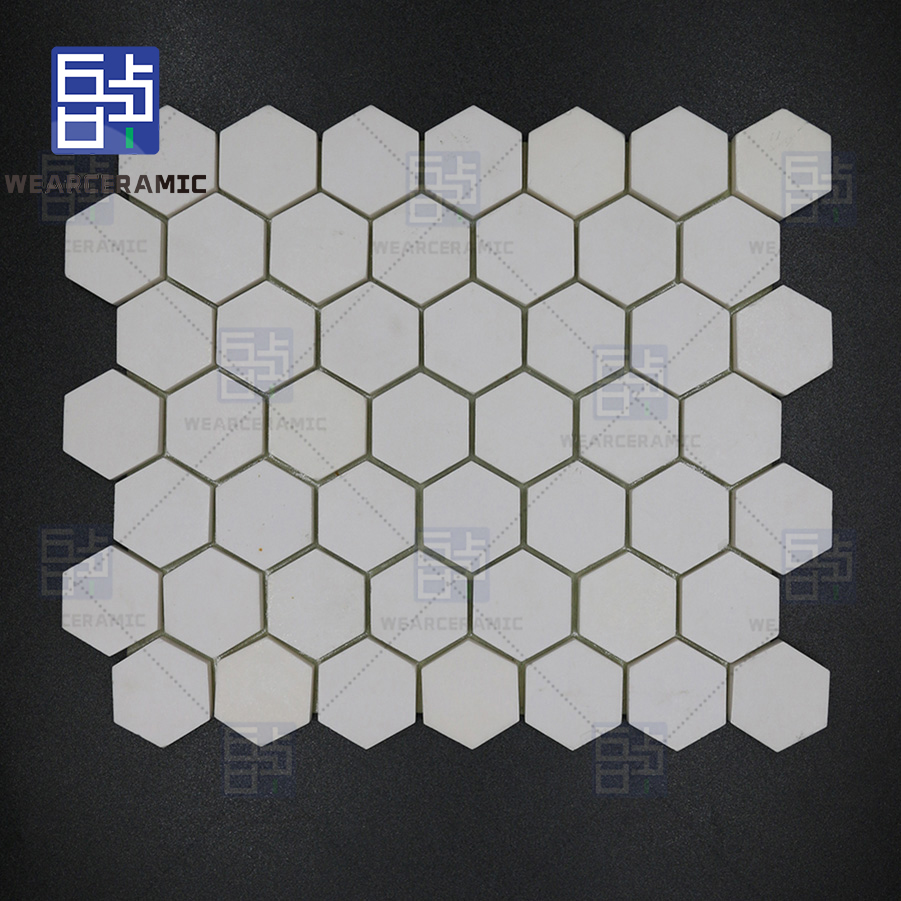

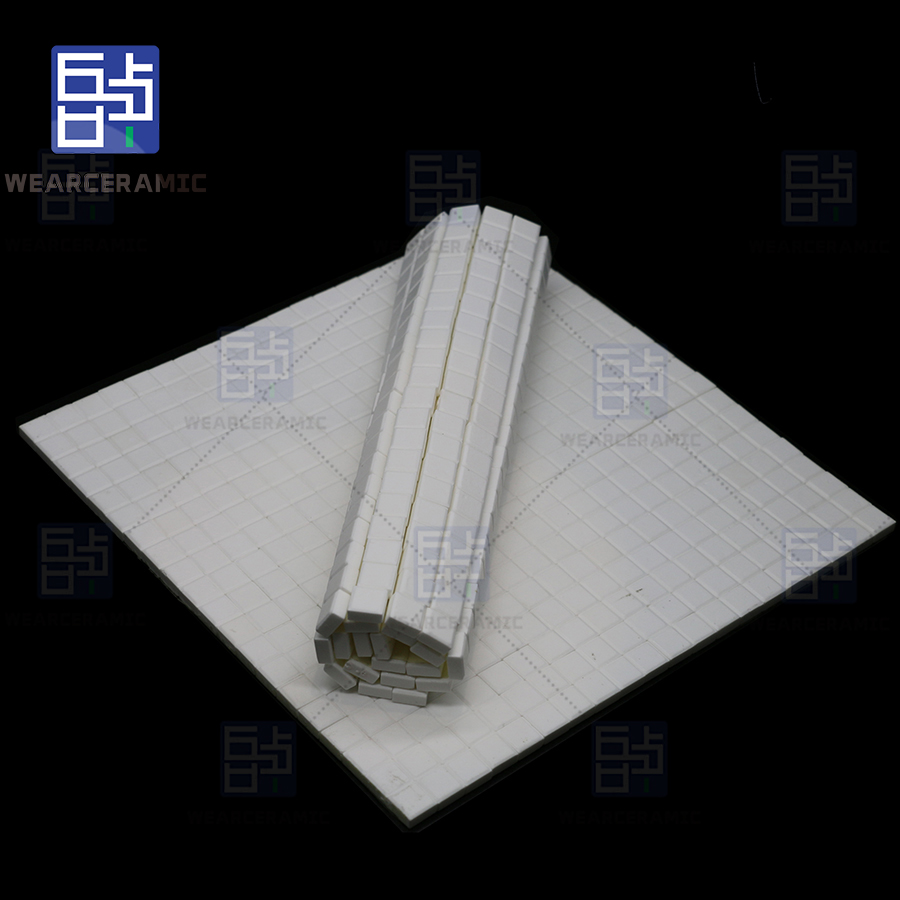

ceramic tiles 1ceramic tiles 2

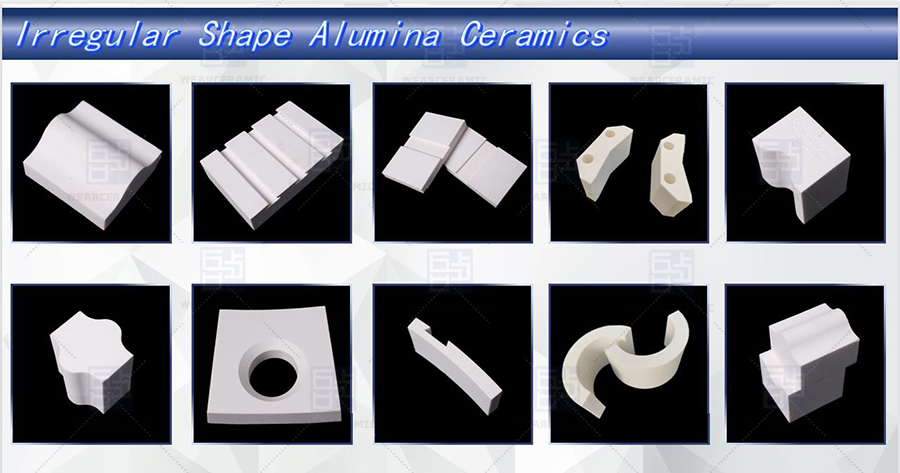

7.special-shaped structural parts

Wear-resistant ceramics for special-shaped structural parts are a kind of special ceramic products widely used in the engineering field. They are mainly used in the manufacture of wear-resistant and corrosion-resistant parts for various types of conveying equipment, mixing equipment, crushing equipment, vibrating screening equipment, etc. Titan can customize and precisely process them according to customer requirements.

ceramic liner


Specification

Type

Length(mm)

Width(mm)

Height(mm)

Flat liner

50~150

25~100

6~50

Weldable liner

50~150

30~100

10~50

Trapezoidal liner

50~150

20~100

8~50


Mosaic Square Tile

Length*Width(mm)

Height(mm)

10*10

3-10

17.5*17.5

3-10

20*20

4-10

25*25

4-10


Mosaic Hex Tile

Length*Width(mm)

Height(mm)

12*12

6-25

12.5*12.5

6-25

(Can be customized according to customer requirements.)


Chemical Composition and Physical Properties

Series

BM92

BMG95

BME95

AL2O3(%)

92±0.5

95±0.5

95±0.5

Bending strength(Mpa)

≥220

≥250

≥300

Compressive strength (Mpa)

≥1050

≥1300

≥1600

Fracture toughness(MPam1/2)

≥3.70

≥3.80

≥4.0

Rockwell hardness(HRA)

≥82

≥85

≥88

Loss bulk(cm³)

≤0.25

≤0.2

≤0.15

Bulk density(g/cm3)

≥3.6

≥3.65

≥3.7


Index test

1.Bulk density

Principle: Archimedean principle and buoyancy method. The equation is formed by the derivation and transformation of the buoyancy and density calculation formula. First, a high-precision solid analytical balance is used to calculate the weight of the sample in the air (W1) and the weight in the water (W2), and the W1-W2 value is calculated. The density of water is ρ=1 by default. By establishing the equation Vsample=Vdrainage, the density of the sample can be calculated: ρ=W1/(W1-W2)xρwater.


2.Loss bulk

Principle: Through the sandblasting device, alumina ceramic sheets of specific specifications are sprayed and worn under specified conditions to cause wear on the surface of the sample. The mass loss of the sample is measured by weighing method, and the wear volume of the sample is calculated based on the mass loss of the sample divided by the volume density.


3.Rockwell hardness

Principle: A test force of a specific size, shape and material is divided into two levels according to the regulations and pressed into the surface of the specimen. After the initial test force is applied, the initial indentation depth is tested. Then the main test force is applied, and the final indentation depth is measured while the initial test force is maintained after the main test force is unloaded. The Rockwell hardness is calculated based on the difference h between the final indentation depth and the initial indentation depth and the constants N and S through the formula Rockwell hardness = N-h/S.


What is Alumina Ceramic Liner used for?

Alumina ceramic liner is an ideal material for the lining of material conveying equipment in the steel, mining, chemical, cement, coal, thermal power, port and other industries. It can be used under conditions of strong wear, strong corrosion, impact resistance, high temperature, etc. It is safe and reliable, protecting equipment pipelines from wear and corrosion, and is a "protective clothing" in harsh environments.


1.Steel industry

Alumina ceramic liner can be used for bin, hopper, ore opener and closure, feeding chute, weighing bucket,blast furnace system skip transport and so on. Improve the wear resistance, service life and conveying efficiency of the equipment;The high temperatures and corrosive materials of the steel production industry can lead to corrosion and decomposition of equipment, and alumina wear-resistant lining can withstand these harsh conditions, protect equipment and ensure the stable operation of the production process.


2.Mining industry

Mining is a typical heavy wear industry, is one of the industries where alumina ceramic lining can play a full role. It can be used for chute,stock binand hopper of transfer station,and abrasive equipment for handling ore,Crushing equipment, such as ball mill, crusher, etc.In addition, it can also be used to protect other equipment in the mine, such as grading screens, pipes, drums, etc., to ensure the normal operation of the equipment.The robustness of the alumina lining ensures that mining projects can proceed smoothly with fewer stoppages, thereby increasing productivity.


3.Chemical industry

In the chemical industry, alumina ceramic liner can be used for the inner wall of reactors, storage tanks, all kinds of pipelines and other equipment to resist the erosion of various corrosive media, prevent the equipment from being corroded and decomposed, and ensure the stability and safety of the production process.


4.Cement industry

Ceramic liner is widely used in the cement industry, mainly reflected in limestone crushing system, raw material pre-homogenization system, raw material grinding system and conveying system, such as crusher, vibrating screen, retracer, raw material mill, conveyor belt and so on. Prevent dust and particulate matter from wearing and clogging the equipment.


5.Coal industryIn the field of coal-fired power plants, alumina linings are used in coal treatment systems, ash and slag treatment systems and coal delivery systems, such as export pipes, primary air pipe elbows, import and export pipes of coarse powder separators and subdivision separators, coal drop pipes, tees, etc., to prevent wear and tear. Alumina ceramic lining provides a protective layer against coal and ash collision, friction and impact, maintaining the efficiency and reliability of power generation equipment.


6.Thermoelectric industry

Thermoelectric industry is usually in high temperature environment, thermal shock and corrosion are common problems. Alumina ceramic liner is often used in high temperature kilns and thermal power plants. In the power industry, alumina ceramic lining is used for the inner wall of high temperature kilns and other equipment to withstand thermal shock and corrosion and protect the equipment from damage. During the coal transportation process of thermal power plants, the coal drop pipe is frequently damaged by continuous abrasive friction. Alumina lining can effectively prevent the impact and wear of coal due to its excellent impact resistance and wear resistance, and play a role in protecting the coal drop pipe.


7.Port industry

In the process of loading and unloading materials, the port terminal has a very large transport volume, high drop impact, and the higher hardness of the ore. The ship unloader hopper, gantry hopper, stacker-reclaimer hopper, belt head hopper and other equipment are very seriously worn. The application of aluminium plates can prevent the leakage of mineral powder and equipment shutdown for maintenance, and the effect is more significant than ordinary lining plates.

ceramic liner

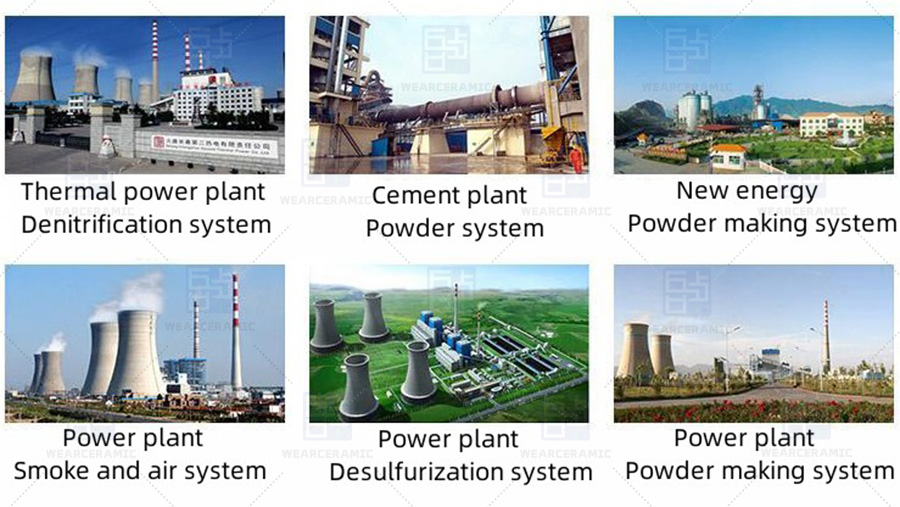

Application equipment

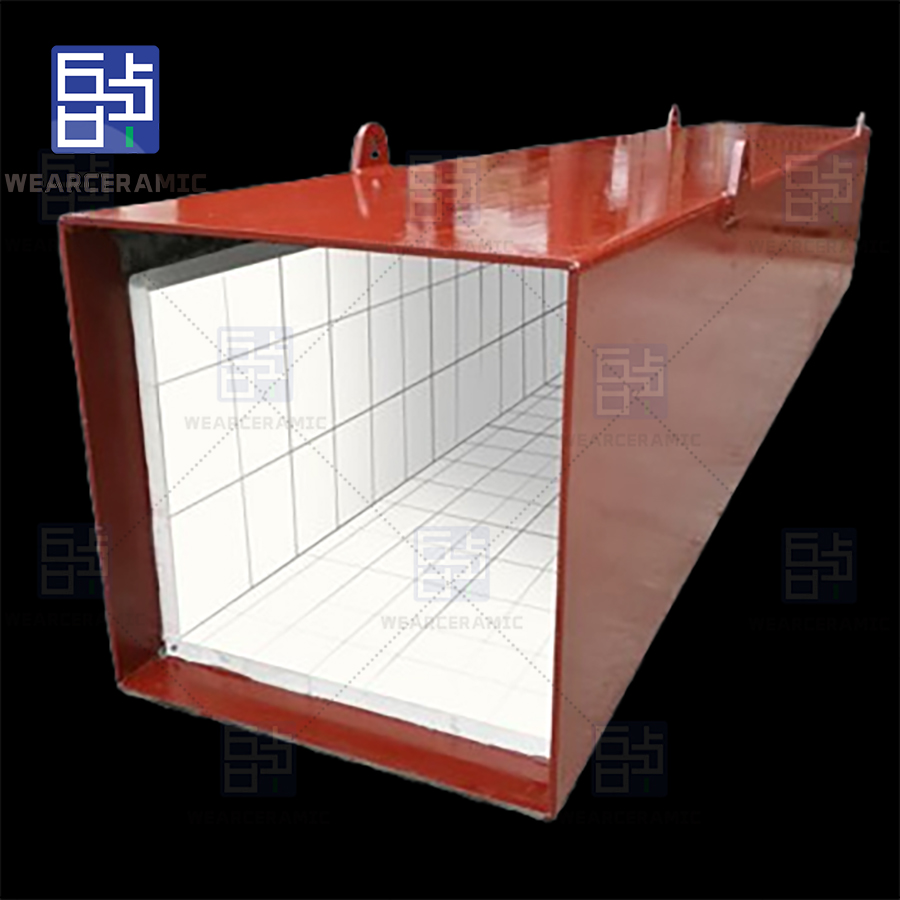

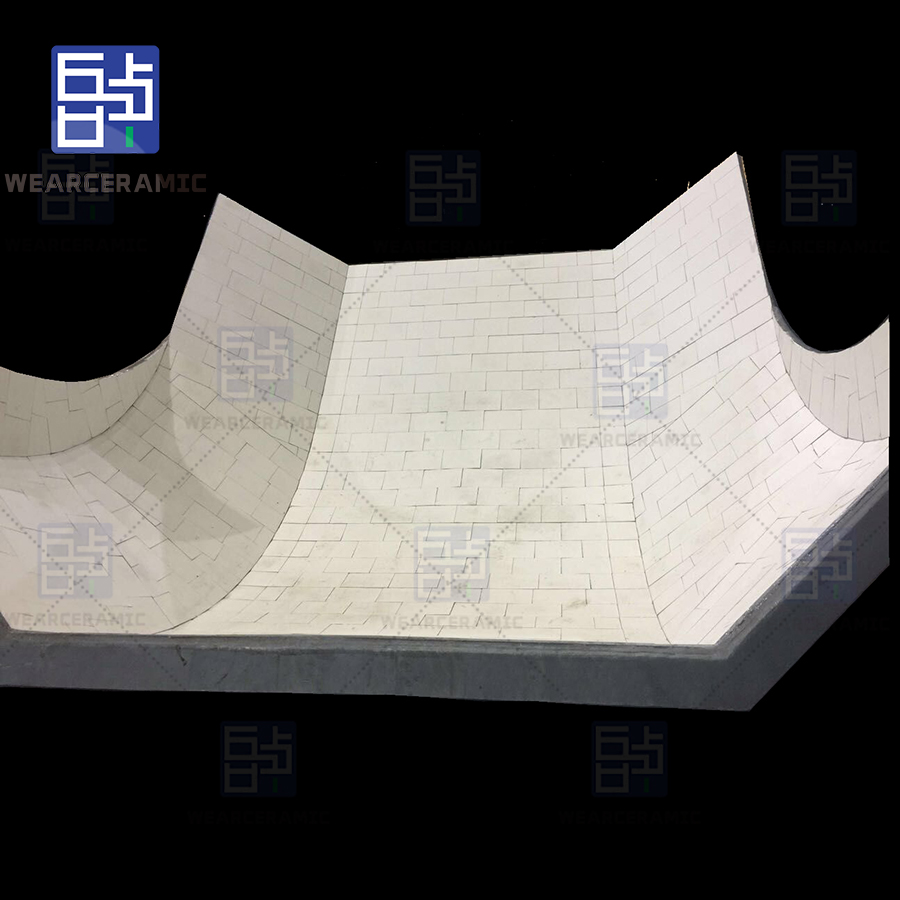

chute 1chute 2

ceramic liner

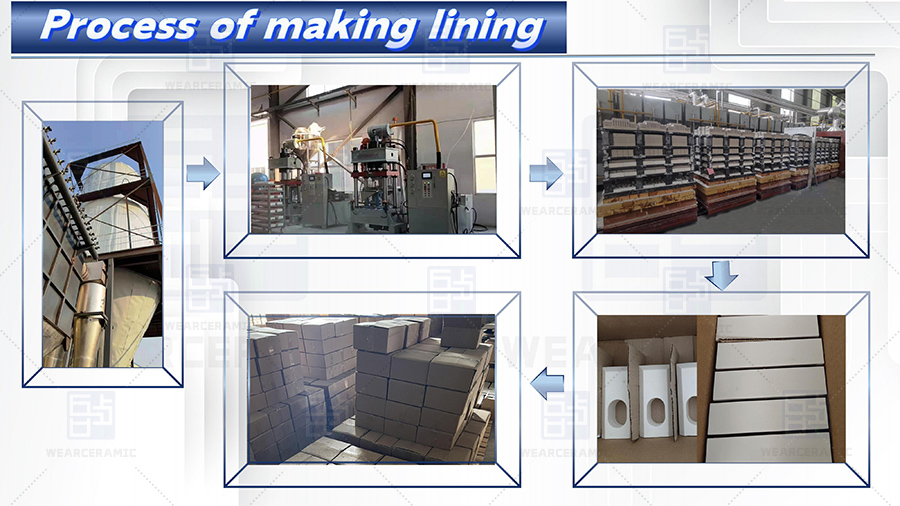

Preparation of Alumina ceramic liner

1.Preparation of ceramic powder: According to the formula, the ball mill and spray dryer are used to control the ingredients, the mill is mixed and ground to the appropriate particle size, and the qualified ceramic powder is prepared by the granulation tower.


2.Pressing of raw materials: Through hydraulic presses and molds, the raw materials are pressed under high pressure to produce plate-shaped and block-shaped ceramic tiles of different specifications.


3.Sintering process: At a temperature of 1350~1650, the formed green body is fired to produce qualified wear-resistant products.


4.Selection process: The fired products are sorted into qualified and unqualified products according to the appearance quality standards, and the products are measured and packed into packaging according to the packaging requirements.

ceramic liner


How to install Alumina ceramic liner

1.Preparation stage: First of all, the surface of the steel should be kept flat, the weld should be ground flat, and the uneven corners should be polished smooth; Secondly, keep the equipment and alumina liner sufficiently clean and dry to avoid oil and debris. In addition, it is necessary to prepare the cutting machine, ceramic adhesive and other necessary items.


2.Cutting ceramic liner: Precisely measure the size inside the equipment. Alumina ceramic liner needs to be cut into different shapes according to the specific paste surface of the equipment. The accuracy of cutting ceramic is related to the later paste process, so this step is particularly important.


3.Mixing ceramic adhesives: in the mixing process, a small amount of times, pay attention to the operation time and curing time of ceramic adhesives, prevent the solidification of ceramic adhesives, and reduce the exposure time of mixed adhesives in the air.


4.Paste lining board: Alumina lining board should be staggered paste, placed in the direction can not hinder the flow of materials, paste gap should not be too large, after pasting to smash, the excess adhesive erase. After pasting, it is necessary to keep the liner from moving freely until it is completely cured.


Precautions

1.Avoid moisture: Because alumina ceramic liner is a pure ceramic material, it is necessary to use packaging bags during storage to avoid moisture or the influence of various pollution sources in the air. Alumina ceramics need to be stored in a relatively dry environment, so it is necessary to choose a well-ventilated environment for storage and do a good job of moisture-proofing.


2.Avoid rapid cooling and heating: Because alumina ceramic materials have good hardness and strength, but their performance will be affected by rapid cooling and heating, so it is recommended not to use rapid cooling and heating during use to avoid cracks, collapse and other quality problems in the product, which will affect the product life.


3.Pay attention to the processing method: Although alumina ceramic liners have many advantages, they are also difficult to process. Therefore, it is necessary to choose the corresponding effective processing method to improve the processing efficiency and quality of the product.


How to clean alumina ceramic lining tiles?

1.To get rid of tough stains, use a scrub brush and a light abrasive.

2.To remove stains from ceramic tiles, use a gentle cloth and a light detergent.

3.To get rid of any dust or debris, sweep the tiles with a broom or vacuum.

4.Use fresh water to rinse the tiles, then pat dry with a cloth.


Quality testing standards

1.Examine the industrial alumina ceramic lining tiles visually for any chips, cracks, or other flaws.

2.To make sure the dimensions are accurate, measure the alumina ceramic lining tiles' diameter, length, and other important measurements.

3.To look for surface flaws, use a surface roughness tester.

4.To look for any problems with surface hardness, use a hardness tester.

5.Confirmation of the alumina ceramic liner tiles' material and chemical makeup.


FAQ

Q:What information should we supply to get a quote?

A:Please offer the specification of alumina ceramic lining tiles, such as shape, dimension, quantity, application etc.


Q:Does this product crack or deform after prolonged use?

A:Our products have high toughness, high bending strength,Long-term use will not appear deformation.


Q:How to choose alumina liner suitable for equipment?

A:1. Understand the working environment of the equipment, such as temperature, pressure, and degree of wear.

2. Understand the performance of alumina ceramics.

3. Understand the size and ensure that the liner size matches the equipment.


Q:Can it be customized?

A:Yes.Please send details.


Q:What are your packing methods?

A:We have them in cartons then pallatized.


Q:How long do alumina ceramic lining tiles last?

A:With proper installation and use, alumina ceramic lining tiles can last for many years. The exact lifespan of the tiles depends on the specific application, the quality of the product, and other factors.


Q:How do ceramic liners compare to traditional steel liners?

A:Ceramic liners offer much higher wear resistance and better corrosion resistance compared to traditional steel liners.
